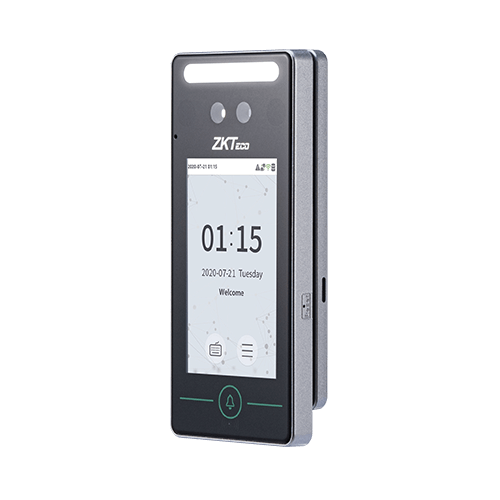

ZKTeco SpeedFace-V4L

Head Office: +92 51 2766289

Sales Manager: +92 300-0091469

Managing Director: +92 303-979779

Parameters

• ModelSpeedFace-V4L
• Display4″ ISP LCD Touch Screen (480*800)
• CameraBinocular Camera@ 2MP
• Operation SystemLinux
• Hardware900MHz Dual Core CPU; 512MB RAM / 512 MB ROM; 2MP Binocular Camera;
  Adjustable LED Supplement Lighting
• Authentication MethodFace / Palm (Customized) / Card / Password (Virtual Keypad)
• Fingerprint Template Capacity/
• Face Template Capacity1,000 (1:N) (Optional:2,000)
  1,000 (1:1) (Optional:2,000)
• Palm Template Capacity1000 (1:N) (Customized)
• Card Capacity1,000 (Optional:2,000)
• Transaction Capacity150,000
• Biometric Verification Speedless than 1 sec (Facial Recognition)
  less than 0.35 Sec (Palm Recognition)
• Touchless Biometric Recognition Distance1cm to 100cm (Facial Recognition)
  Up to 50cm (Palm Recognition) (Customized)
• False Acceptance Rate (FAR) %FAR ≤ 0.01% (Visible Light Facial Recognition)
  FAR ≤ 0.05% (ZKPalm V12.0)
• False Rejection Rate (FRR) %FRR ≤ 0.02% (Visible Light Facial Recognition)
  FRR ≤ 1.8% (ZKPalm V12.0)
• Biometric AlgorithmZKFace V3.9
  ArmaturaPalm
• Card TypeID Card@125 kHz (Standard)
  13.56MHz IC Card (Optional)
  HID card (Optional)
  Felica card (Optional)
• QR CodeDynamic or Static QR codes on the ZKBio CVAccess mobile application QR code
• CommunicationTCP/IP*1, USB Host*1, Wi-Fi (Optional), Wiegand Input*1, Wiegand Output*1, RS485 *1*, 3rd-party Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm Output*1, Aux Input*1
• Standard FunctionsID Card, ADMS, T9 Input, DST, 14-digit User ID, Access Levels, Groups, Holidays, Anti-passback, Record Query, Tamper Switch Alarm, Multiple Verification Methods
• Power SupplyDC 12V 3A
• Operating Temperature0°C ~ 45°C (32°F ~ 113°F)
• Operating Humidity10% to 90% RH (Non-condensing)
• Dimension157.94*72.94*23 mm (L*W*H)
• Gross Weight0.26 kg
• Net Weight0.85 kg
• Supported SoftwareSoftware: ZKBio CVAccess
  Mobile App: ZSmart
  Cloud Service: ZKBio Zlink

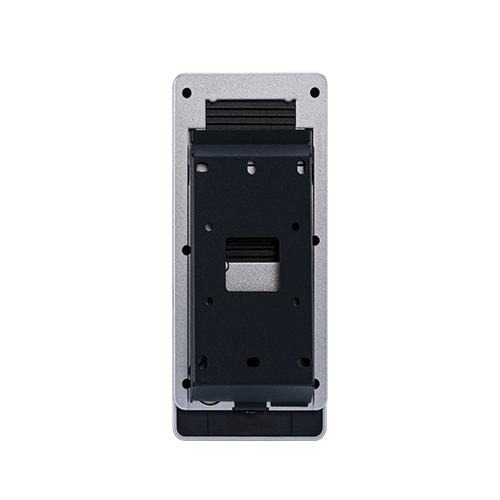

• InstallationWall-mount
• CertificationsISO14001, ISO9001, CE, FCC
