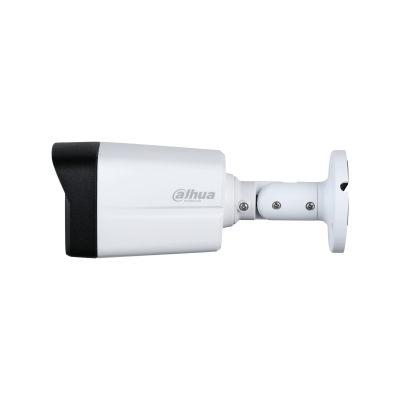

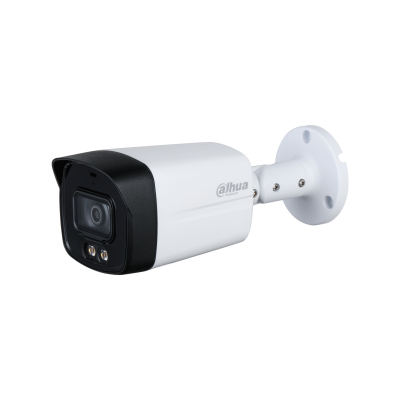

Dahua HAC-HFW1509CP-LED

5MP CMOS Camera – Overview

Key Features

• Resolution: 5MP (2880 × 1620)
• IR Illumination: Up to 40m (131.2 ft)
• Lens: Fixed lens, 2.8mm or 3.6mm options
• Weatherproof: IP67-rated for outdoor use
• Pan/Tilt/Rotation: Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360°
• Day/Night Mode: Auto (ICR) / Manual
• Smart Light: Yes (Smart illumination)

Camera Specifications

• Image Sensor: 5MP CMOS
• Max. Resolution: 2880 (H) × 1620 (V), 5MP
• Scanning System: Progressive
• Electronic Shutter Speed:
  • PAL: 1/3 s ~ 1/100,000 s
  • NTSC: 1/4 s ~ 1/100,000 s
• S/N Ratio: >65 dB
• Minimum Illumination:
  • 0.001 Lux/F1.0 (Color)
  • 0 Lux with warm light on
• Illuminator: 2 built-in IR LEDs, illumination range up to 40m (131.2 ft)
• Illuminator Control: Auto or Manual

Lens Specifications

• Lens Type: Fixed lens, M12 mount
• Focal Length Options: 2.8mm, 3.6mm
• Max Aperture: F1.0
• Field of View:
  • 2.8mm: H: 112°; V: 57°; D: 132°
  • 3.6mm: H: 88°; V: 46°; D: 104°
• Close Focus Distance:
  • 2.8mm: 1.6m (5.25 ft)
  • 3.6mm: 2.3m (7.5 ft)

DORI Distance (Detection, Observation, Recognition, Identification)

Video Specifications

• Resolution:
  • 5M (2880 × 1620)
  • 4M (2560 × 1440)
  • 1080p (1920 × 1080)
  • 960H (960 × 576/960 × 480)
• Frame Rate:
  • CVI:
    • PAL: 5M@25 fps, 4M@25 fps, 1080p@25 fps
    • NTSC: 5M@25 fps, 4M@30 fps, 1080p@30 fps
  • AHD:
    • PAL: 4M@25 fps
    • NTSC: 4M@30 fps
  • TVI:
    • PAL: 4M@25 fps
    • NTSC: 4M@30 fps
  • CVBS:
    • PAL: 960H
    • NTSC: 960H
• BLC: BLC/HLC/WDR/HLC-Pro
• WDR: 120 dB
• White Balance: Auto / Area WB
• Gain Control: Auto / Manual
• Noise Reduction: 3D NR (Noise Reduction)
• Smart Light: Yes
• Mirror: Off/On
• Privacy Masking: Off/On (8 areas, rectangle)

Certifications

• CE: EN55032, EN55024, EN50130-4, EN60950-1
• FCC: CFR 47 FCC Part 15 Subpart B, ANSI C63.4-2014
• UL: UL60950-1+CAN/CSA C22.2 No.60950-1

Power and Environmental Specifications

• Power Supply: 12V DC ±30%
• Power Consumption: Max. 6.4W (12V DC, warm light on)
• Operating Temperature: –40°C to +60°C (–40°F to +140°F)
• Operating Humidity: <95% RH (non-condensing)
• Storage Temperature: –40°C to +60°C (–40°F to +140°F)
• Protection Grade: IP67 (Weatherproof)

Construction and Dimensions

• Casing: Metal front cover + plastic body + metal bracket
• Camera Dimensions: 198.4mm × 80.2mm × 76.2mm (7.81″ × 3.15″ × 3″)
• Net Weight: 0.33 kg (0.73 lb)
• Gross Weight: 0.52 kg (1.15 lb)
