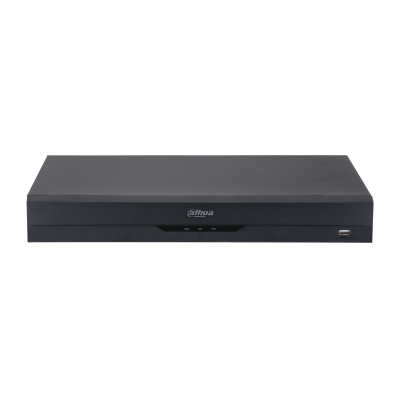

Dahua XVR-5216AN-I3

Processor & Operating System:

• Main Processor: Embedded processor.
• Operating System: Embedded Linux, optimized for surveillance applications.

Perimeter Protection:

• Advanced Model: 2 channels, 10 IVS (Intelligent Video Surveillance) per channel.
• General Model: 4 channels, 10 IVS per channel.
• Face Detection:
  • Attributes: 6 (gender, age group, glasses, expressions, face mask, beard).
  • Performance: Detects up to 12 faces per channel.

Face Recognition:

• Face Database: Stores up to 10 databases and 10,000 images.
• Performance: 2 channels for face recognition.

SMD Plus (Smart Motion Detection):

• Secondary filtering: Reduces false alarms from environmental factors (leaves, rain, lighting changes).

Audio & Video Inputs:

• Analog Camera Inputs: 16 channels (BNC), supporting various standards (CVI, AHD, TVI, CVBS).
• Camera Resolutions:
  • CVI: Up to 5MP.
  • TVI/AHD: Up to 5MP.
  • IP Camera: 16+8 channels, each up to 6MP.

Video Encoding & Playback:

• Compression: AI Coding/H.265+/H.265/H.264+/H.264.
• Dual Stream Support: Includes lower resolution streams (D1/CIF).
• Playback Modes: Instant, general, event, smart playback (with face and motion detection).

Network & Interoperability:

• Protocols: Supports HTTP, HTTPS, RTSP, UDP, and more.
• Mobile Access: iPhone, iPad, Android apps available.
• Third-Party Camera Compatibility: Supports ONVIF, RTSP, and several major camera brands.

Storage & Backup:

• Storage Capacity: 2 SATA ports (up to 16TB HDD).
• Backup Methods: Via USB or network.
• Disk Grouping: Supported for managing storage more efficiently.

Alarm & Notification:

• General Alarms: Motion detection, video loss, tampering.
• Intelligent Alarms: Face detection, face recognition, perimeter protection.
• Alarm Linkage: Includes recording, snapshot, voice prompt, buzzer, and email notifications.

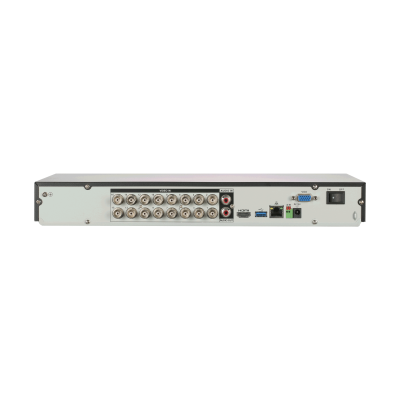

Ports & Connectivity:

• Audio Ports: 1 RCA input, 16 BNC input (coaxial), 1 RCA output.
• Two-way Talk: Enabled for communication through the first channel.
• Other Ports: Includes RS-485 for PTZ control, USB (1x USB 2.0, 1x USB 3.0), HDMI, VGA, network RJ-45 port (10/100/1000 Mbps).

Power & Installation:

• Power Supply: DC 12V, 4A.
• Power Consumption: Less than 12W.
• Dimensions: 1U form factor, 375.0 mm × 289.0 mm × 53.0 mm.
• Weight: Net weight of 1.56 kg, gross weight of 2.86 kg.
• Installation: Desktop.

Environmental Conditions:

• Operating Temperature: –10 °C to +55 °C.
• Operating Humidity: 10%–90%.

Certifications:

• CE-LVD (EN 60950-1/IEC 60950-1).
• CE-EMC (EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024).
• FCC (Part 15 Subpart B).

This system is designed to provide high-quality video surveillance with advanced AI processing, including perimeter protection and intelligent video analysis for accurate monitoring. Its flexible storage and network options, combined with wide camera compatibility and remote access, make it suitable for various security setups.
