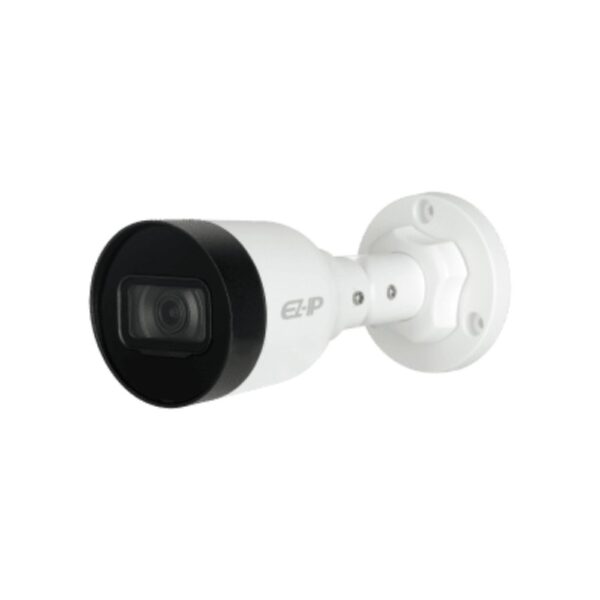

Dahua IPC-HFW1230S1P-A-S4

Imaging and Sensor:

• Image Sensor: 1/2.8” 2 Megapixel Progressive CMOS.
• Effective Pixels: 1920 (H) x 1080 (V) for Full HD resolution.
• RAM/ROM: 64MB RAM, 16MB ROM for efficient video processing and storage.
• Scanning System: Progressive scanning for smooth video with minimal distortion.
• Electronic Shutter Speed: Auto/Manual with a range of 1/3 to 1/100,000 seconds.
• Minimum Illumination:
  • 0.01 Lux @F2.0 (Color, 30 IRE).
  • 0.001 Lux @F2.0 (B/W, 30 IRE).
  • 0 Lux with IR LEDs on (providing full visibility in complete darkness).
• S/N Ratio: More than 56 dB for clear and noise-free video.

IR and Lens Features:

• IR Distance: Up to 30 meters (98 feet) for clear night-time surveillance.
• IR LEDs: 1 IR LED with Auto/Manual control for optimized low-light performance.
• Lens Type: Fixed focal length with M12 mount.
• Focal Length: Options for 2.8 mm and 3.6 mm.
• Max Aperture: F2.0 for good performance in low-light environments.
• Angle of View:
  • 2.8 mm: Horizontal: 102°, Vertical: 54°, Diagonal: 120°.
  • 3.6 mm: Horizontal: 88°, Vertical: 47°, Diagonal: 104°.
• Close Focus Distance:
  • 2.8 mm: 0.5 m (1.6 ft).
  • 3.6 mm: 0.8 m (2.62 ft).

DORI (Detection, Observation, Recognition, Identification) Distances:

• 2.8 mm Lens:
  • Detect: 38.6 m (126.64 ft).
  • Observe: 15.4 m (50.52 ft).
  • Recognize: 7.7 m (25.26 ft).
  • Identify: 3.9 m (12.80 ft).
• 3.6 mm Lens:
  • Detect: 49.7 m (163.06 ft).
  • Observe: 19.9 m (65.29 ft).
  • Recognize: 9.9 m (32.48 ft).
  • Identify: 5.0 m (16.40 ft).

PTZ and Video Features:

• Pan/Tilt/Rotation Range:
  • Pan: 0° to 360°.
  • Tilt: 0° to 90°.
  • Rotation: 0° to 360° for versatile monitoring angles.
• Video Compression: Supports H.265, H.264, MJPEG (Sub-stream only).
• Smart Codec: Smart H.265+ and Smart H.264+ for efficient compression.
• Streaming Capability: Dual streams (main and sub-stream).
• Resolution and Frame Rate:
  • Main stream: 1920 × 1080 at 1–25/30 fps.
  • Sub stream: 704 × 576 at 1–25 fps and 704 × 480 at 1–30 fps.
• Bit Rate Control: CBR/VBR with a bit rate range:
  • H.264: 32 kbps to 6144 kbps.
  • H.265: 12 kbps to 6144 kbps.
• Day/Night Mode: Auto (ICR), Color, and B/W settings for optimal performance in varying light conditions.
• Backlight Compensation (BLC): Supports BLC, HLC, and DWDR for improved visibility in challenging lighting situations.
• White Balance: Auto, manual, or regional custom options for precise color balance.

Additional Imaging Features:

• Noise Reduction: 3D DNR for reducing noise in low-light conditions.
• Motion Detection: Configurable for 4 rectangular zones.
• Smart IR: Automatic IR adjustment based on scene brightness.
• Digital Zoom: 16x for flexible zooming into footage.
• Image Rotation: 0°/90°/180°/270° rotation for flexible installation.
• Mirror and Privacy Masking: Mirror function and 4 privacy masking zones.

Audio:

• Compression: Built-in microphone with audio compression options.
• Supported Audio Codecs: G.711A, G.711Mu, G.726.

Networking and Security:

• Network Interface: RJ-45 (10/100 Base-T) for reliable connectivity.
• Protocol Support: IPv4, IPv6, HTTP, FTP, DNS, NTP, and more for seamless integration with network setups.
• Interoperability: ONVIF (Profile S), P2P, Genetec for compatibility with other systems.
• Streaming Methods: Supports unicast and multicast streaming.
• Cybersecurity: Features for secure connections and encryption.

Power and Environmental Specifications:

• Power Supply: DC 12V or PoE (802.3af).
• Power Consumption:
  • Basic: 1.2 W (12V DC), 2 W (PoE).
  • Max: 3.2 W (12V DC), 4.1 W (PoE) with IR and H.265.
• Operating Conditions: -40°C to +60°C (-40°F to +140°F) with up to 95% humidity.
• Ingress Protection: IP67-rated, suitable for outdoor use.

Physical Dimensions and Construction:

• Casing: Combination of metal and plastic for durability.
• Dimensions: 162.6 mm × 70 mm × 70 mm (6.4” × 2.8” × 2.8”).
• Weight:
  • Net weight: 0.22 kg (0.5 lb).
  • Gross weight: 0.34 kg (0.7 lb).

Certifications:

• CE-LVD: EN 62368-1.
• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU.
• FCC: 47 CFR FCC Part 15, Subpart B for electromagnetic compatibility.

This camera is an excellent choice for various surveillance scenarios, offering high-resolution video, robust IR features, advanced motion detection, and versatile lens options, all in a weather-resistant design for both indoor and outdoor use.
