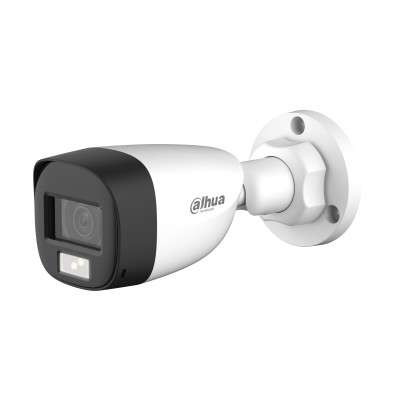

Dahua HAC-HFW1500CLP-IL-A

5MP Starlight HDCVI IR Bullet Camera – Quick Specs

Key Features

• Resolution: 5MP (2880 × 1620)
• IR and Warm Light Illumination: Up to 20 m (65.6 ft) each
• Lens: Fixed-focal, 2.8 mm or 3.6 mm options
• Weatherproof: IP67-rated for outdoor use
• Day/Night Mode: Automatic switch with ICR (Infrared Cut Filter)
• Audio: Built-in microphone

Camera Specifications

• Image Sensor: 5MP CMOS
• Max Resolution: 2880 (H) × 1620 (V)
• Scanning System: Progressive
• Electronic Shutter Speed:
  • PAL: 1/25s–1/100,000s
  • NTSC: 1/30s–1/100,000s
• Minimum Illumination:
  • 0.05 lux @ F1.6 (Color, 30 IRE)
  • 0.005 lux @ F1.6 (B/W, 30 IRE)
  • 0 lux with illuminator on
• S/N Ratio: >65 dB

Lens Specifications

• Lens Type: Fixed-focal
• Mount Type: M12
• Focal Length: 2.8 mm or 3.6 mm
• Max Aperture: F1.6
• Field of View:
  • 2.8 mm: H: 106°; V: 56°; D: 125°
  • 3.6 mm: H: 92°; V: 48°; D: 109°
• Close Focus Distance:
  • 2.8 mm: 0.8 m (2.62 ft)
  • 3.6 mm: 1.3 m (4.27 ft)

DORI Distance (Detection, Observation, Recognition, Identification)

Video Specifications

• Frame Rate:
  • CVI: 5M@25 fps (PAL), 4M@30 fps (NTSC)
  • AHD & TVI: 4M@25 fps (PAL), 4M@30 fps (NTSC)
  • CVBS: 960H
• Resolution Options: 5MP, 4MP, 1080P, 960H
• Day/Night Mode: Auto(ICR)/Color/B/W
• Backlight Control: BLC, HLC, DWDR
• WDR: DWDR (Digital WDR)
• Noise Reduction: 2D NR
• Illumination Mode: Smart IR & Warm Light (WL), IR Mode, WL Mode
• Privacy Masking: Up to 8 areas

Certifications

• CE-LVD: EN 62368-1
• CE-EMC: EN 55032, EN 55035
• FCC: 47 CFR FCC Part 15, Subpart B

Port and Power

• Video Output: CVI/TVI/AHD/CVBS via one BNC port
• Audio Input: 1-channel built-in MIC
• Power Supply: 12V ± 30% DC
• Power Consumption: Max 4.5 W (WLED on)

Environmental and Structural Details

• Operating Temperature: –40°C to +60°C (–40°F to +140°F)
• Operating Humidity: <95% (non-condensing)
• Protection Grade: IP67 (Weatherproof)
• Casing Material: Plastic
• Dimensions: 163.4 mm × 69.7 mm × 70 mm (6.43″ × 2.74″ × 2.76″)
• Weight:
  • Net: 0.19 kg (0.42 lb)
  • Gross: 0.27 kg (0.6 lb)
• Installation: Wall mount, ceiling mount, vertical pole mount
