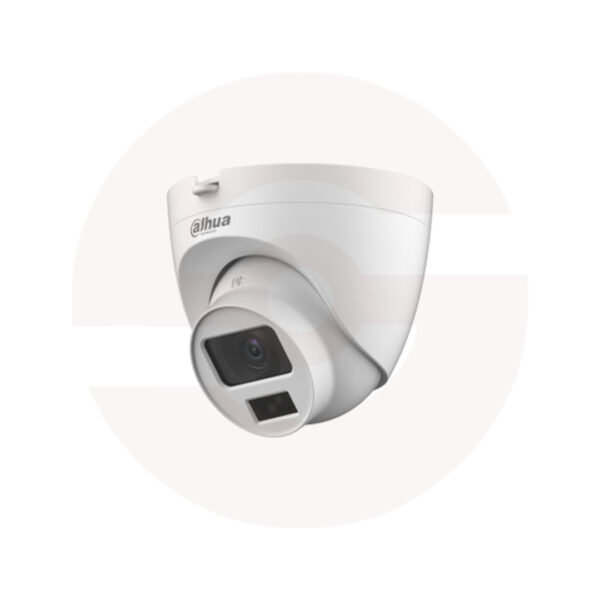

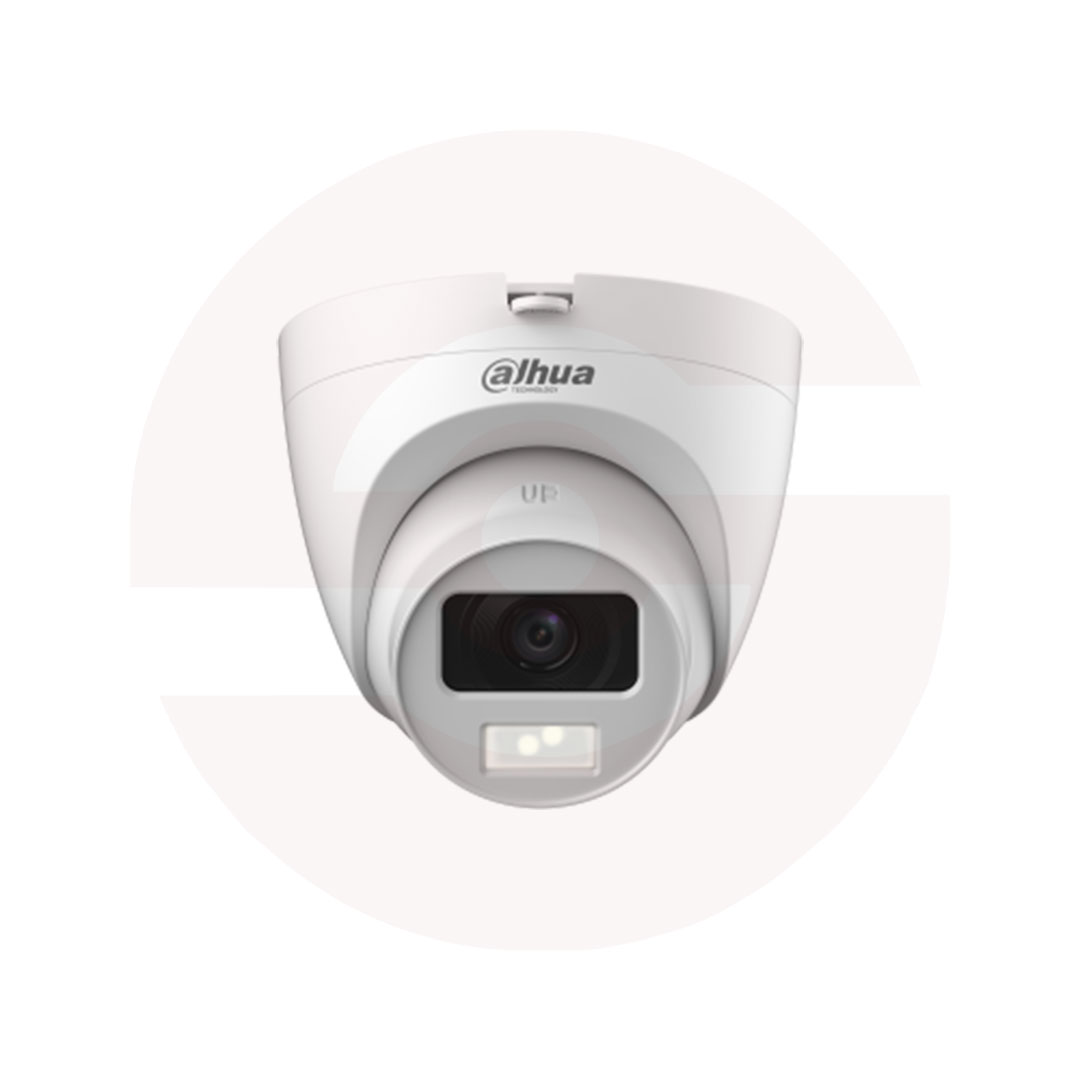

Dahua HAC-HDW1200CLQP-IL-A

Key Camera Specifications

• Image Sensor: 2 MP CMOS, with a maximum resolution of 1920 (H) × 1080 (V).
• Scanning System: Progressive.
• Electronic Shutter Speed:
  • PAL: 1/25 s–1/100000 s.
  • NTSC: 1/30 s–1/100000 s.
• Minimum Illumination:
  • Color: 0.01 lux@F2.0.
  • B/W: 0.001 lux@F2.0.
  • 0 lux with IR on.
• S/N Ratio: >65 dB.
• Illumination Distance: Up to 20 m (65.62 ft) for both IR and warm light, with automatic on/off control.

Lens Details

• Lens Type: Fixed-focal.
• Auto Focus: No.
• Lens Mount: M12.
• Focal Length Options: 2.8 mm and 3.6 mm.
• Max Aperture: F2.0.
• Field of View:
  • 2.8 mm: H: 102°, V: 60°, D: 129°.
  • 3.6 mm: H: 83°, V: 48°, D: 105°.
• Close Focus Distance:
  • 2.8 mm: 0.5 m (1.64 ft).
  • 3.6 mm: 0.7 m (2.30 ft).
• DORI Distance:
  • 2.8 mm: Detect (41.1 m), Observe (16.5 m), Recognize (8.3 m), Identify (4.1 m).
  • 3.6 mm: Detect (50.9 m), Observe (20.3 m), Recognize (10.2 m), Identify (5.1 m).

Video and Imaging Features

• Frame Rate:
  • CVI, AHD, TVI: 1080p at 25 fps (PAL) or 30 fps (NTSC).
  • CVBS: 960H.
• Resolution: 1080p (1920 × 1080) and 960H (960 × 576 or 960 × 480).
• Day/Night Modes: Auto(ICR), Color, and B/W.
• Backlight Compensation (BLC): BLC, HLC, DWDR.
• Wide Dynamic Range (WDR): DWDR.
• White Balance: Auto and area white balance.
• Gain Control: Auto.
• Noise Reduction: 3D NR.
• Illumination Mode: Smart IR and warm light, with selectable IR or warm light modes.
• Mirror: Yes.
• Privacy Masking: 8 configurable areas (rectangular).

Certifications

• Certifications:
  • CE-LVD: EN 62368-1.
  • CE-EMC: EN 55032; EN 55035.
  • FCC: 47 CFR FCC Part 15, Subpart B.

Port and Power Specifications

• Video Output: Selectable output between CVI, TVI, AHD, and CVBS via a single BNC port.
• Audio Input: 1 channel.
• Power Supply: 12 VDC ± 30%.
• Power Consumption: Maximum of 2.6 W with IR on.

Environmental and Protection Ratings

• Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F).
• Operating Humidity: Up to 95% RH, non-condensing.
• Storage Conditions: –40 °C to +60 °C, <95% RH.
• Protection: IP67-rated, ensuring durability in harsh outdoor conditions.

Physical Structure

• Casing Material: Plastic.
• Dimensions: Φ97.1 mm × 93.8 mm (Φ3.82″ × 3.69″).
• Weight:
  • Net: 0.18 kg (0.40 lb).
  • Gross: 0.29 kg (0.64 lb).

Installation Options

• Mounting: Supports wall, ceiling, or vertical pole mounting for versatile placement options.

Summary

This camera offers robust surveillance with high-definition resolution, dual IR and warm light for effective night vision, and weather resistance, making it ideal for both indoor and outdoor setups.
