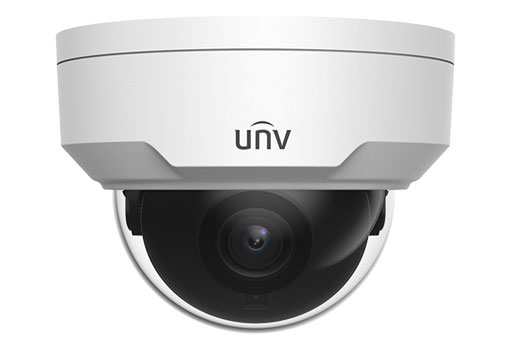

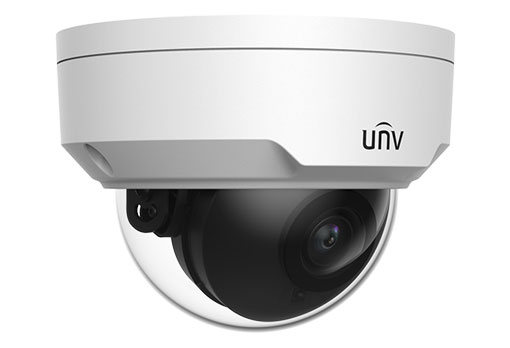

Uniview 4MP Vandal-resistant Network IR Fixed Dome Camera – Uniview IPC324LB-SF28(40)K-G

Categories: , , Tags: , , , , ,

Please contact us to confirm the latest price.

Compare

Camera Overview

Feature IPC324LB-SF28K-G IPC324LB-SF40K-G
Image Sensor 1/3″, Progressive Scan, 4MP CMOS 1/3″, Progressive Scan, 4MP CMOS
Min. Illumination 0.01 lux (F2.0, AGC ON), 0 lux with IR Same
Day/Night IR-cut filter with auto switch (ICR) Same
Shutter Auto/Manual, 1 ~ 1/100000s Same
S/N Ratio >56dB Same
WDR DWDR Same
IR Range Up to 30m (98ft) Same
IR Wavelength 850nm Same
IR Control Auto/Manual Same

Lens and Field of View

Feature IPC324LB-SF28K-G IPC324LB-SF40K-G
Lens Type 2.8mm @ F2.0 4.0mm @ F2.0
Iris Fixed Fixed
Horizontal FOV 97.0° 79.0°
Vertical FOV 52.2° 42.3°
Diagonal FOV 107.5° 85.1°

DORI Distance

Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8mm 63.0 25.2 12.6 6.3
4.0mm 90.0 36.0 18.0 9.0

Video and Image

Feature Description
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Profiles Baseline, Main, High
Max Resolution 4MP (2560×1440) @ 25fps
Sub Stream Resolutions D1, 640×360, 2CIF, CIF @ 30fps
Bit Rate 128 Kbps ~ 6144 Kbps
U-code Support Yes
OSD / Privacy Mask Up to 4 OSDs / Up to 4 areas
ROI Areas Up to 8 areas
DNR / Smart IR 2D/3D DNR / Yes
Flip Options Normal/Vertical/Horizontal/180°
BLC / HLC / Defog Supported
Dewarping N/A

Detection & Smart Features

Feature Description
Behavior Detection Cross line, Intrusion (human detection)
Other Alarms Motion detection, Tampering
Security HTTPS, TLS 1.2, IP filtering, ARP, Auth, etc.

Storage

Feature Description
Edge Storage Micro SD, up to 128GB
Network Storage ANR, NAS (NFS)

Network & Integration

Feature Description
Protocols IPv4, TCP/IP, HTTP/HTTPS, FTP, RTSP, SNMP, etc.
ONVIF Compliance Profile S, G, T
Max Users 32 users (Admin/Common levels)
Client Software EZStation, EZView, EZLive
Web Browsers IE, Chrome, Firefox, Edge (Plug-in/Plug-in free)

Physical & Power

Feature Description
Power Supply DC 12V±25%, PoE (IEEE 802.3af)
Max Power 4.0W
Body Material Metal + Plastic
Dimensions Ø109 x 81mm
Weight 0.36kg
Protection IP67, IK10, Surge: 4KV
Environment -30°C to 60°C, ≤95% RH
